JF15K Diamond

CPU Cooler (Dual Tower, 4 Fans)
Product Color: Black/White
Product Dimensions: 203*114*153 mm
Heat Pipe Specifications: Φ6mm x 6pcs
Fan Size: 100*100*20 mm
Fan Speed: 800-1800 RPM (±10%)
Fan Noise: 19.3-30.4 dB(A) (MAX)
TDP: 280W (Based on 11900K test)
Intel Compatibility: 1200/115X/1700/1851
AMD Compatibility: AM4, AM5
Net Weight: 1385g Gross Weight: 1772g
Package Dimensions: 24*18.5*16 cm

Quad-Fan Configuration: The JF15K Diamond is equipped with four 100mm PWM-controlled fans. Two fans are positioned on the exterior of the heatsink, while the other two are nestled between the dual heatsink towers. These fans operate at speeds ranging from 1000 to 2700 RPM, providing an airflow of 19.49 to 55.46 CFM.
Massive Heatsink Design: The cooler features a dual-fin stack design with six elongated heat pipes, spanning nearly the entire width of a standard motherboard. Its dimensions are 203mm (L) x 115mm (W) x 153mm (H), ensuring substantial heat dissipation.
High Cooling Capacity: With a verified cooling potential of up to 280W TDP, the JF15K Diamond is designed to handle the thermal demands of the latest high-end CPUs under full load.
Memory Clearance: The heatsink provides up to 53mm of clearance for memory modules, accommodating most standard RAM sizes.
Broad Compatibility: It supports modern Intel (LGA1700) and AMD (AM5) sockets.

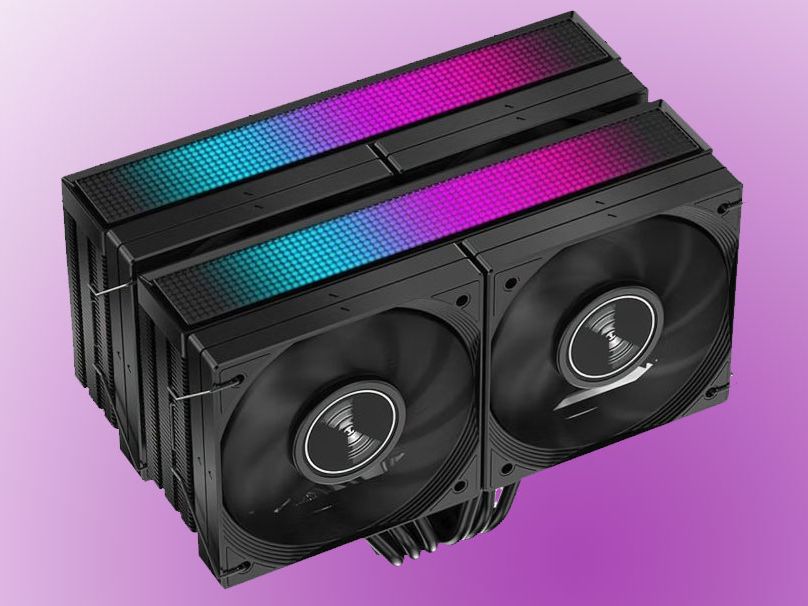

Aesthetic Options: The JF15K Diamond is available in three variants: black with ARGB lighting, white with ARGB lighting, and a plain black version without ARGB. The ARGB models feature an illuminated accent plate on top of the cooler.
